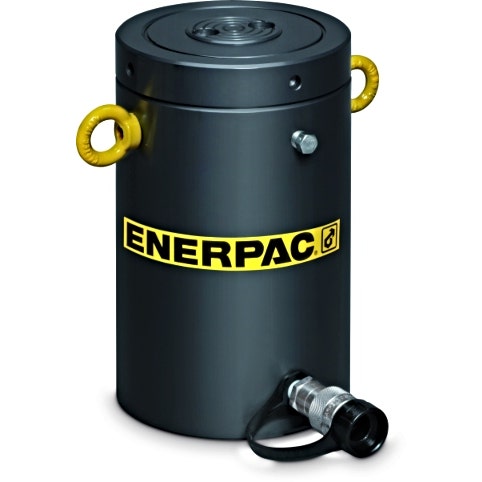

Enerpac HCL1008 High Tonnage Lock Nut Hydraulic
Maximum Operating Pressure10000 PSI Capacity100 Ton Stroke7.87 in Collapsed height13.27 in Extended height21.14 in Return typeSingle-Acting Plunger typeSolid Body materialSteel Effective area22.19 in? Oil capacity174.7 in? Surface treatmentNitride Optional tilt saddle addition to collapsed height0.59 in Optional tilt saddle diameter2.8 in Cylinder outside diameter6.89 in Cylinder bore diameter5.31 in Base to advance port1.3 in Saddle diameter2.8 in Saddle protrusion from plunger0.08 in Saddle maximum tilt angle radius5 ? Weight (kg)63.182000
Model : HCL1008
Lock nut provides positive and safe mechanical load holding
Low friction locking rings spin easy, save time and effort
Designed to withstand 10% side-load up to 90% of maximum stroke
Hardened surface resists side-loading and cyclic wear
Overflow port as stroke limiter to prevent plunger blow-out
Weather protected, inside and out
Replaceable bearings enclose the plunger for support throughout the stroke
Certified lifting eyes and base mounting holes
