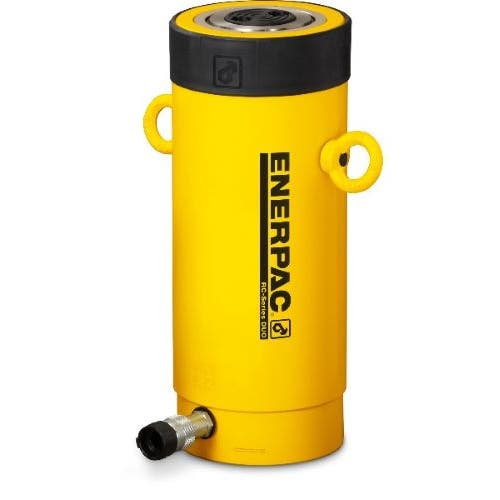

Enerpac RC1006 General Purpose Cylinder
Maximum Operating Pressure10000 PSI Capacity100 Ton Stroke6.63 in Collapsed height14.06 in Extended height20.69 in Return typeSingle-Acting Plunger typeSolid Body materialSteel Effective area20.63 in? Oil capacity136.67 in? Surface treatmentPaint Optional tilt saddle addition to collapsed height0.59 in Optional tilt saddle diameter2.8 in Cylinder outside diameter7 in Cylinder bore diameter5.13 in Plunger diameter4.13 in Base to advance port1.63 in Saddle diameter2.8 in Saddle protrusion from plunger0.11 in Saddle maximum tilt angle radius5 ? Base mounting holes bolt circle5.5 in in Base mounting holes thread3/4″ – 10 UN Collar thread6 7/8″- 12 UN Collar thread length1.75 in Base mounting holes thread depth1 in Weight (kg)73.182000
Model : RC1006
Unique GR2 Bearing Design, reduces wear, extending life
Base mounting holes enable easy fixturing
Designed for use in all positions
High strength alloy steel for durability
Redesigned cylinder thread protector for ease of use
Heavy-duty, pretensioned spring improves retraction speed
Baked enamel finish for increased corrosion resistance
CR400 coupler and dust cap included on all models
Plunger wiper reduces contamination, extending
