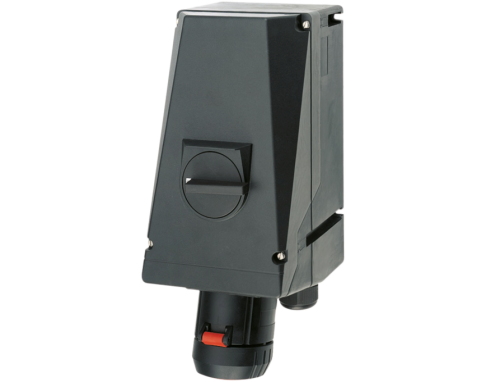

GHG 514 4407 R3001 63A 500V 4Pole 7H Ex-wall socket
GH hazardous, heavy duty IEC 60309 devices are used where hazardous gases may be present, and in areas prone to dust, dirt, vibration, hard use and abuse. Also used in locations where complete protection against water jets and even temporary flooding is required, or in corrosive environments caused by chemicals, atmospheres and water. Commonly used in chemical plants, mining, drilling and steel/grain/flour mills. The plugs and sockets GHG 514 are suitable for use in Zone 1, 2 and 21, 22 hazardous areas acc. to IEC/EN 60079-10-1 and IEC/EN 60079-10-2.
Technical Specifications Cable Entry 2 x M40 metal thread with 2 plastic Ex-screw plug Connecting Terminals 2 x 4 – 25 mm² / with ring cable lug 1 x 35 mm Current (A) 63A Voltage (V) 480-500 V Frequency up to 400 Hz Material glass-fibre reinforced polyester Operating Temperature -20 °C up to +55°C Colour Black International approvals
Nickel-plated contacts Low insertion force Safety standard IP66 applies also in the plugged-in state Full AC-3 switching ability Self-cleaning lamellar contacts, low transition resistance All-pole on/off switching Easy plugging
